Stabilizer Foot Pad Restoration
Reengineered a damaged stabilizer foot pad using scan data to develop a precise CAD model and photorealistic renderings.
Subject matter

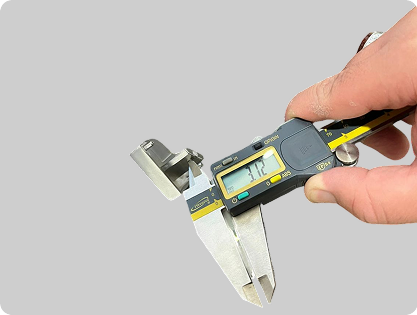

The damaged stabilizer foot pad was identified for restoration and accurate remanufacturing to regain full performance.

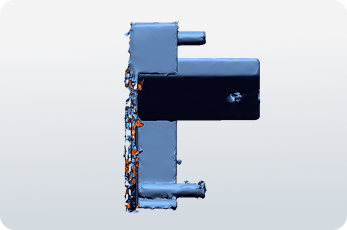

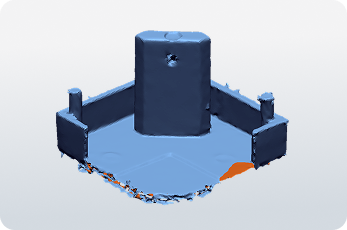

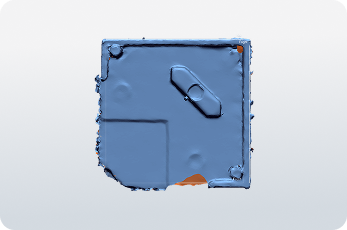

raw 3D Scan
A raw mesh model of the stabilizer foot pad, generated through 3D scanning, laid the foundation for the reverse engineering process.

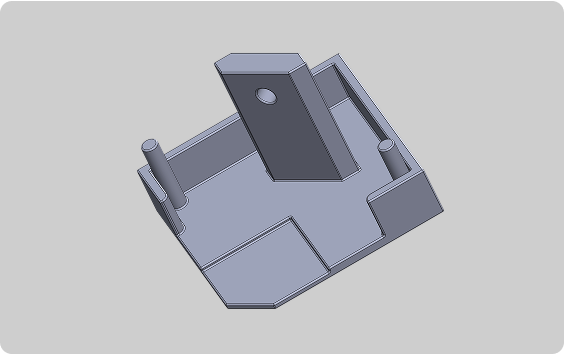

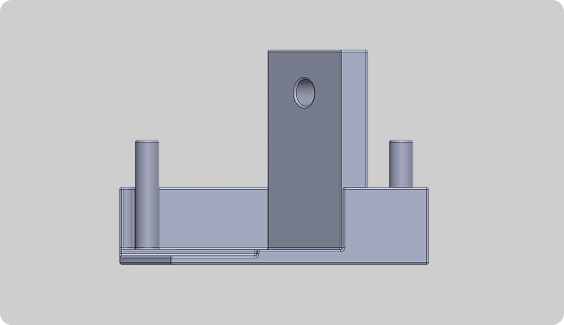

final Model

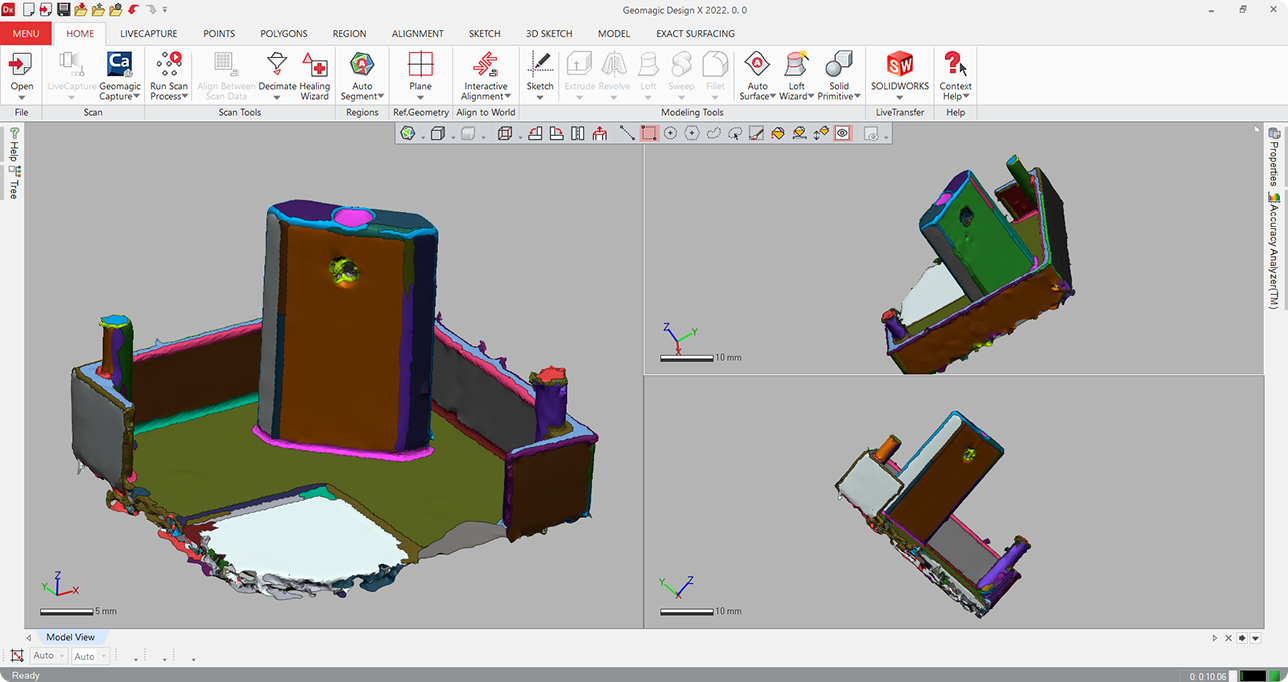

Using the scanned mesh as a reference, a feature-based CAD Model of the stabilizer foot pad was created, resulting in a precise STEP file STEP file ready for manufacturing.
Rebuilding Your 3d Scans with Accuracy
Revitalizing your projects by converting incomplete scans into accurate CAD models and stunning visual renderings.
