Clasp Assembly Repair and Restoration
Transformed a defective clasp assembly into a precise CAD model through scan data, complemented with detailed rendered visuals.
Subject matter

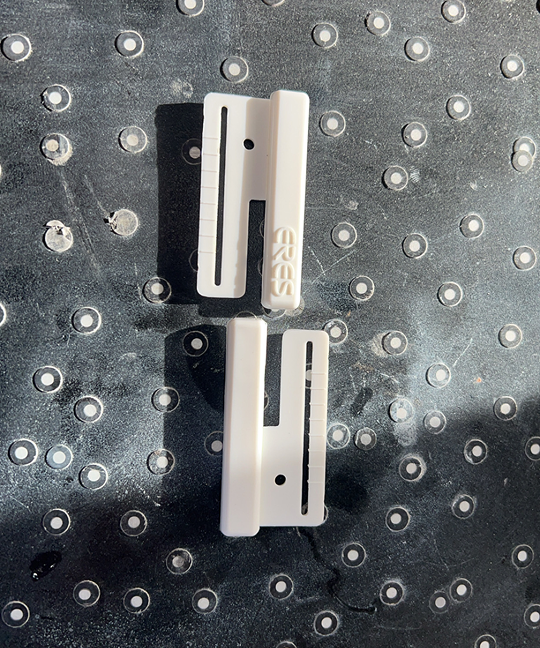

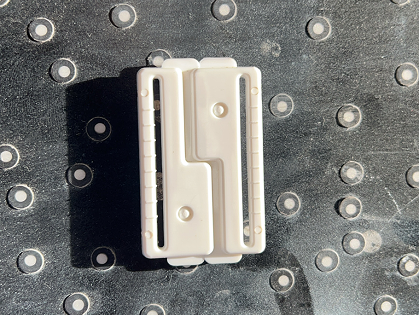

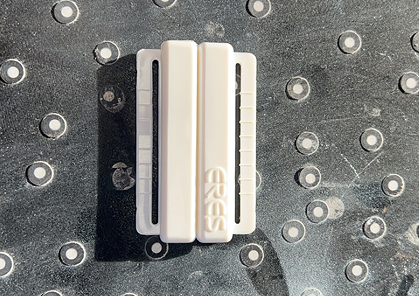

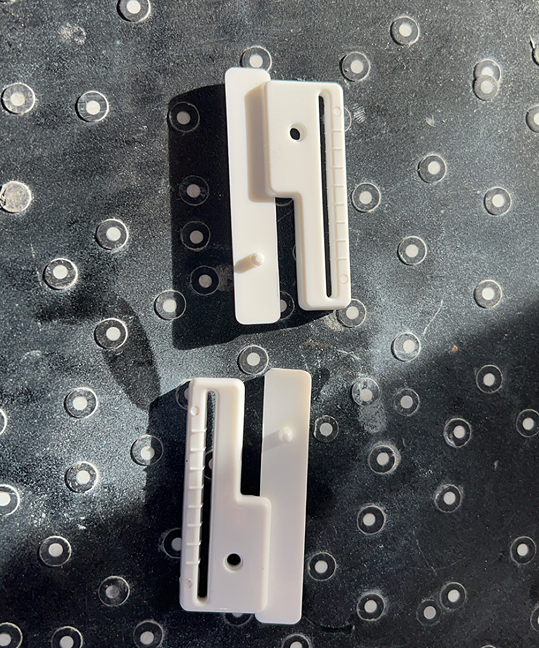

The damaged clasp bracket was identified for restoration and accurately remanufactured.

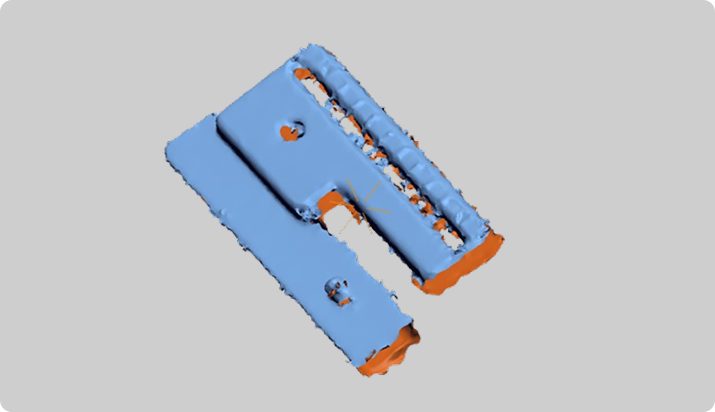

raw 3d scan

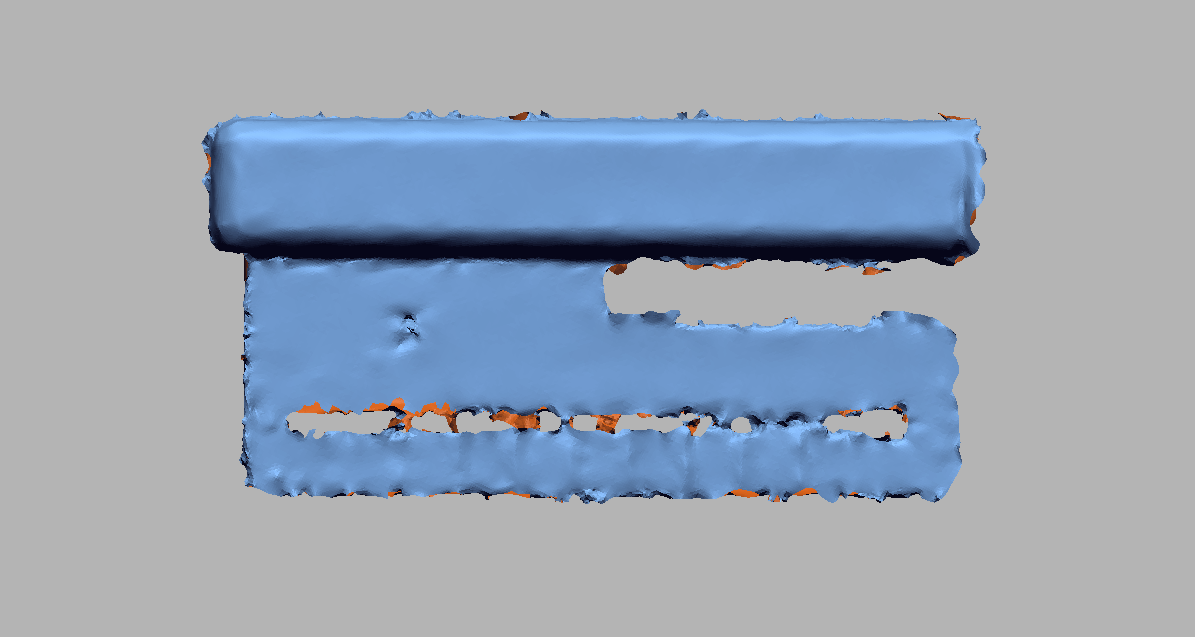

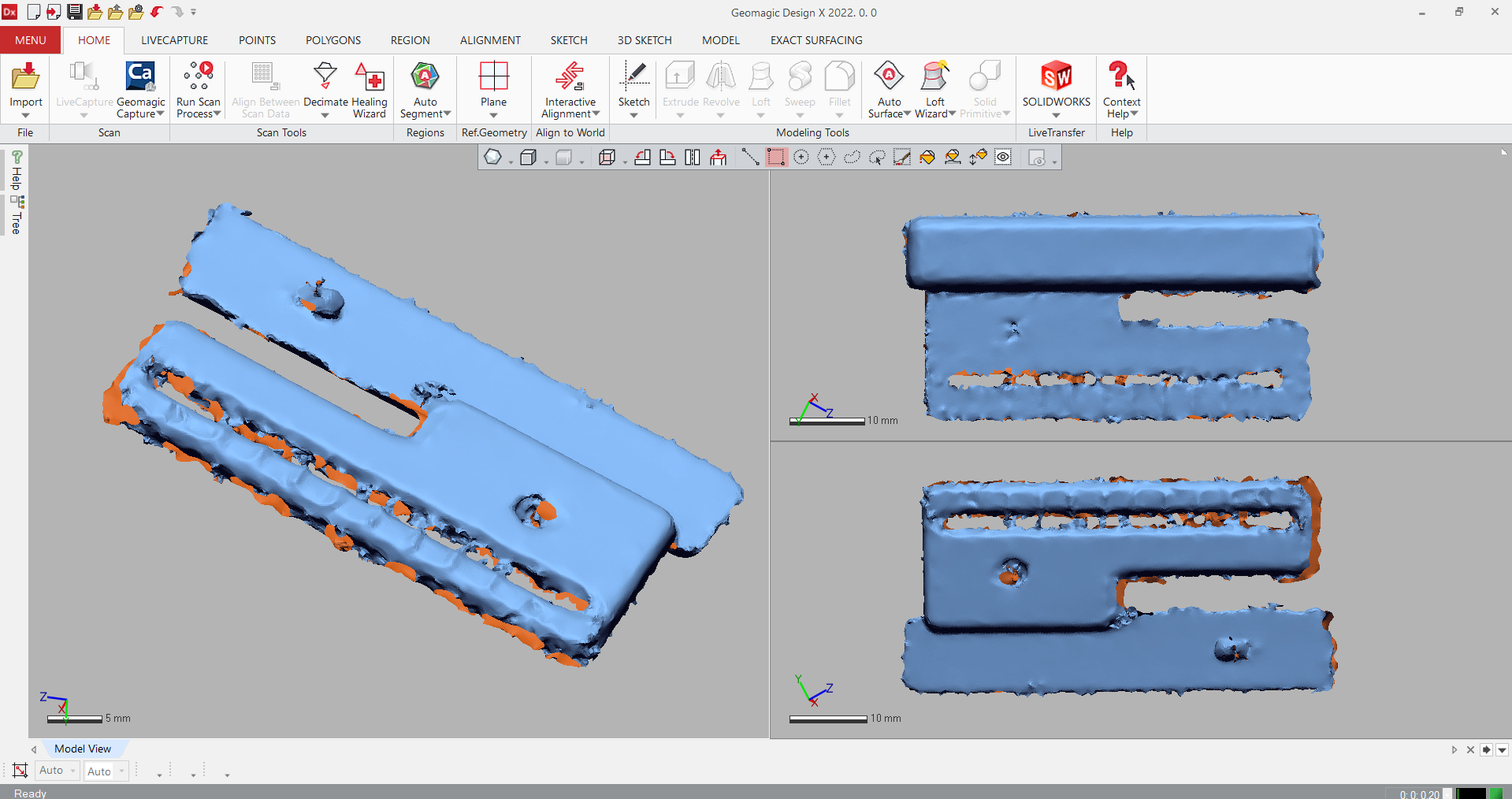

A raw mesh generated through 3D Scanning served as the foundation for the reverse engineering process.
fnal model

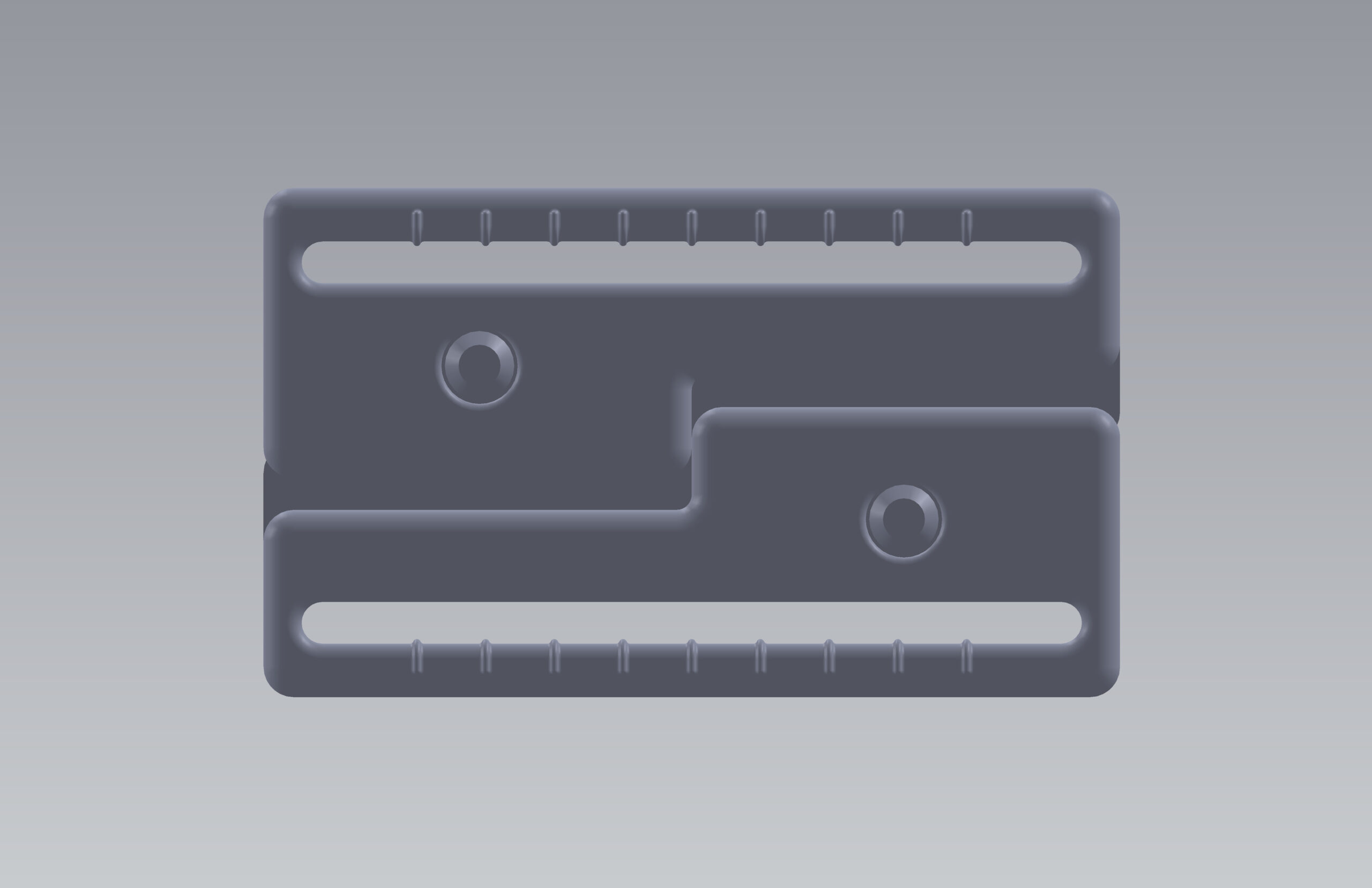

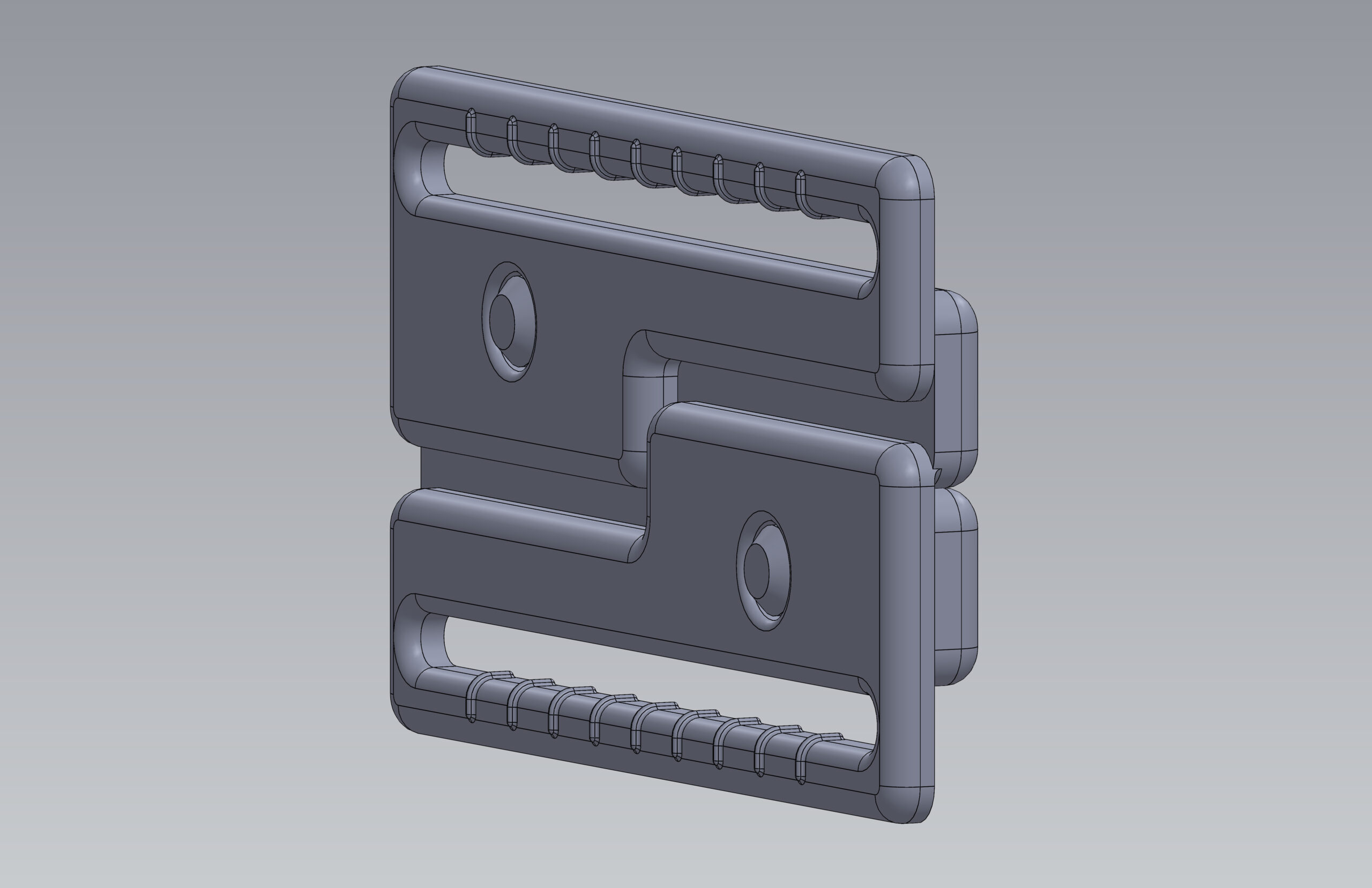

Based on the scanned mesh, a precise CAD Model of the clasp bracket was created, yielding a fully optimized STEP file for manufacturing.
Want to see your mesh files turned into accurate CAD designs?
We refine damaged scans into precision-engineered CAD models and captivating renders, restoring your project’s essence.
